CJ Frame Machines
The Signature Series Frame Rack
The Signature is an automotive frame rack machine that comes in three-, four- or five-tower configurations.
CJJ, Inc., is a longtime manufacturer of frame equipment that makes and sells the Signature frame rack. Made in the U.S.A.
The Signature’s 10,000-pound lift capacity is supported by both the ram’s steel construction and the lifting power of dual hydraulic rams.A hand-held unit on 25 feet of cord controls the Signature’s centralized hydraulic system.
Specification
Length of bed top: 20 ft.
Length w/towers extended: (5 tower machine) 24 ft. 3 in.
Width of bed: 88 in.
Width w/towers extended: 14 ft. 4 in.
Width of treadway: 28 in.
12,000 lb. lift capacity.
Weight: 5 tower 8,100 lbs., 4 tower 7,650 lbs., 3 tower 7,050 lbs.
Width between treadways: 32 in.
Overall height: 9 ft. 3 in.
Working height: 31 in.
Hydraulics: (5 tower machine) 10 & 5 ton
Power required: 120v, 20 amp, dedicated service
Signature Hybrid Frame Rack
Our Signature Hybrid Frame Rack Machines were created with versatility and power at top of mind. They have 3 pivoting pulling towers at one end of the bed and 2 (or 3) movable towers that ride on a track around the other end.
The pivoting towers provide strength, stability and repair width while the movable towers make 360-degree pulling access possible. This combination gives auto body technicians 10-ton hydraulics at each tower plus 360-degree pulling access to the vehicle frame.
That makes the Hybrid a great frame rack with less “dead zones”. The towers glide into position with smooth, one-handed motion around the track making tower group pulls easier than ever.
Features
10-ton hydraulics in all towers provides the pulling power.
Movable towers make group pulls possible.
360-degree access, less dead zones.
Comes with 2 or 3 movable towers, your choice.
V-rollers allow smooth, one-handed positioning of towers along track.
Easy tie-down system secures track towers for pulling.
Removable cross members allow access to front and rear of vehicle.
Ability to group towers at drive-on end.
Hydraulic quick connections on frame rack bed, 2 per side.
Two-year limited warranty.
Signature Hybrid frame machines are made in the USA.
Specification
Length of bed top: 20 ft.
Length w/towers extended: 24 ft. 6 in.
Width of bed: 88 in.
Width w/towers extended: Pivot end 13 ft. 4 in. Track end 11 ft. 4 in.
Width of treadway: 28 in.
Width between treadways: 32 in.
Working height: 31 in.
Hydraulics: 10 ton
Power required: 120v, 20 amp, dedicated service

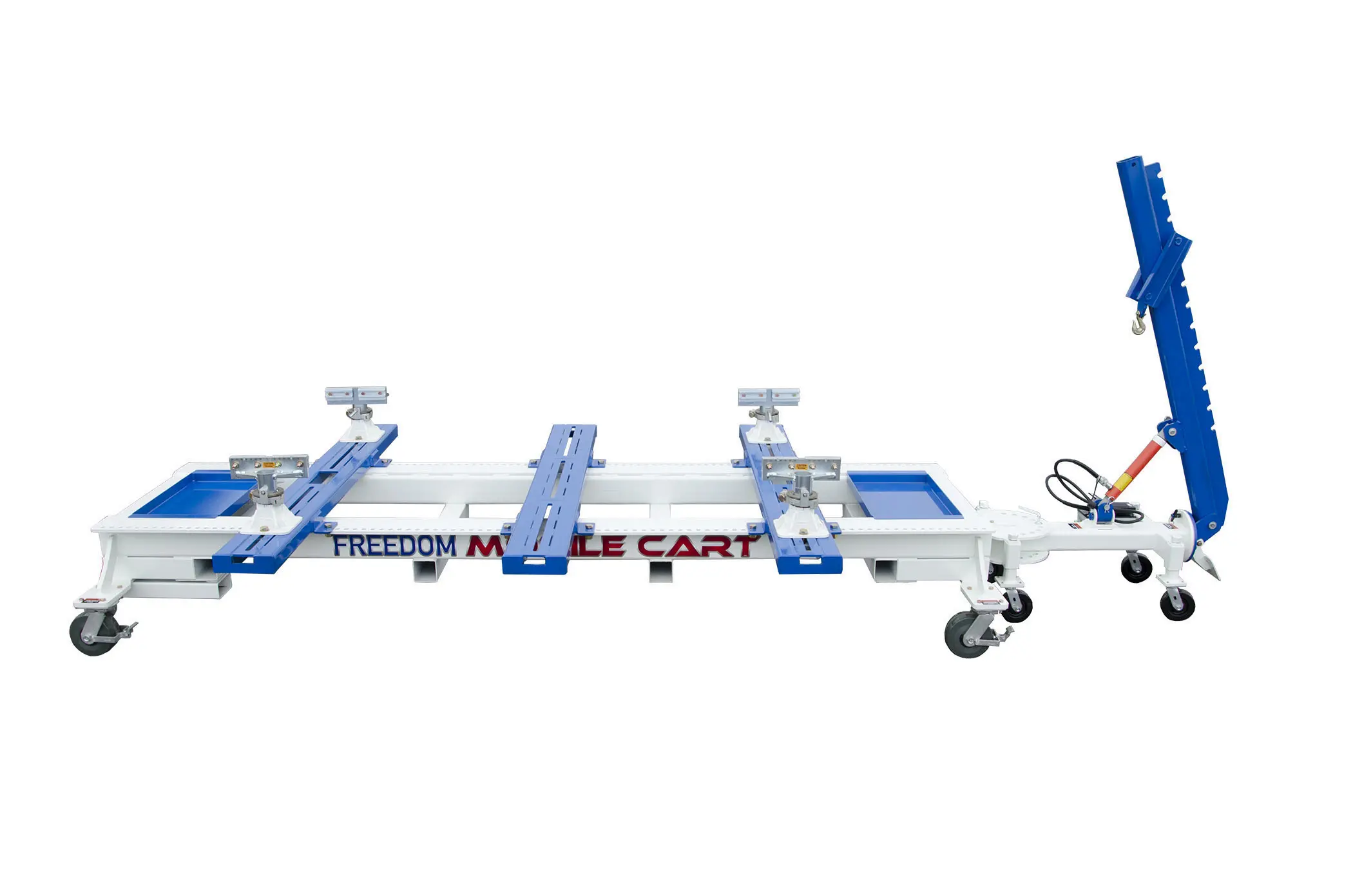

American Freedom Mobile Cart
Lift, Inspect, and Pull
Specification
Mobile Cart Length: (bed) 13 ft.
Length w/tower attached: 17 ft. 9 in.
Mobile Cart width: (top) 41.25
Width w/tower attached: 8.25 ft.
Width w/caster brackets: 55 in.
Adjustable pinchweld holding bracket : 80.75 in.
Mobile cart height: 21.75 in Height w/pinchweld clamps:37in
Removable Tower Specifications:
Tower height: 85 in.
Length w/tower and base: 4 ft. 9 in.
SPX Hydraulics: 5 ton at 5,000 psi
Tower upright pivots from side to side
Tower base pivots left to right
(12) different tower mounting spots
Spring loaded caster on tower base
Includes: Fork lift pockets on one side of cart
Drop in tool pan on each side
Adjustable signature pinchweld clamps
Extra rail for down pull attachments
3000 LB heavy duty casters with lock
4- wheel stands
American Freedom Frame Rack
The American Freedom Frame Rack machine is available in two lengths to meet you needs, a 20 foot model or the longer 22 foot model
Specification
Length of bed top: 20 ft.
Length w/towers extended: 24 ft. 11 in.
Width of bed: 88 in.
Width w/towers extended: 11 ft. 4 in.
Width of treadway: 26.5 in.
Width between treadways: 32 in.
Overall height: 9 ft. 11 in.
Working height: 12 in. up to 42 in.
Hydraulics: 10 ton, all electric over hyd. or all air over hyd.
Power required: 120v, 20 amp, dedicated service
Optional tower configurations: 2, 3, or 4 towers
Tie downs: 222
American Freedom GT Frame Rack
Features of the American Freedom GT frame rack machine include; a 92 inch wide platform, working heights as low as 12 inches and as high as 42 inches in addition to a 12,000 pound lift capacity.
Allowing auto body shops to increase their productivity, by accepting heavier and wider vehicles, is the number one benefit of this new machine.
Specification
Length of bed top: 22 ft.
Length w/towers extended: 26 ft. 11 in.
Width of bed: 92 in.
Width w/towers extended: Pivot end 12 ft. 6 in.
Width of treadway: 28.5 in.
Width between treadways: 35.5 in.
Overall height: 9 ft. 11 in.
Loading height: 12 in.
Working height: 12 in. up to 42 in.
Hydraulics: 10 ton, electric over Hydraulic or air over Hydraulic
Power required: 120v, 20 amp, dedicated service
Optional tower configurations: 2, 3, or 4 towers
Tie downs: 222
Lift capacity: 12,000 lbs.
